BTZR-II Flocking swab DNA lifting applicator with tube and desiccant
Product Usage
Swab the suspected area for potential trace DNA.
Product composition

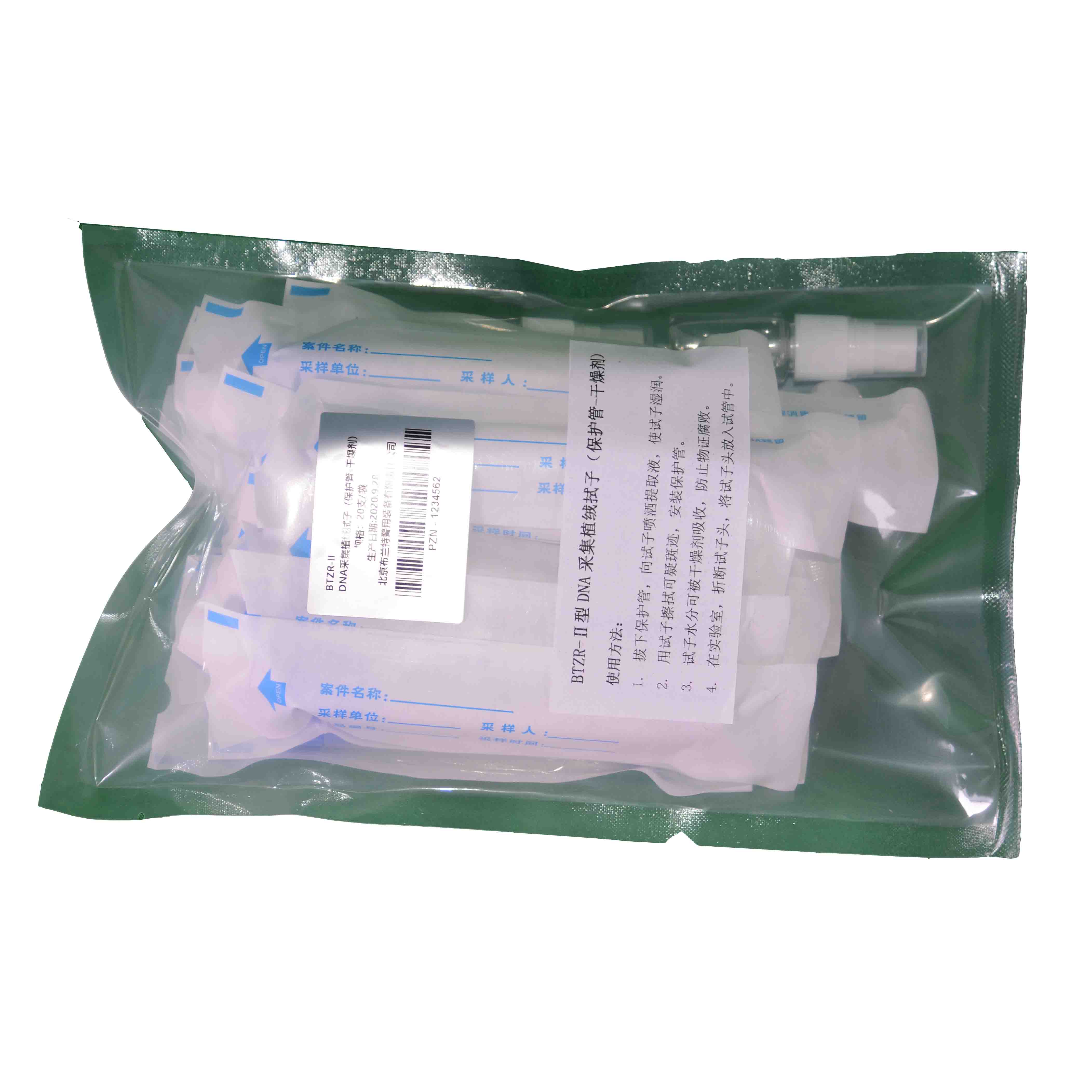

20 cotton swabs,2 bottles of extraction solution / bag
DNA disinfection
In the clean workshop, put the flocking swabs into the protective tube and sterilize it with ethylene oxide. After vacuumizing the sterilizer, ethylene oxide was released. Ethylene oxide enters through the holes at the top of the protective tube, sterilizes the swabs, eliminates all DNA and ensure that there is no residual DNA. The rubber cap filled with desiccant is installed at the front end of the protective tube, and then sealed with dialysis paper packaging bag
Product introduction
A. DNA collection flocking swab is made of nylon fiber flocking technology, and the front end is coated with nylon short fiber fixed in a vertical way, so that there is no absorption hole in the collection area of the whole collection swab, and DNA cells will not disperse and stay in the fiber, which is conducive to faster and more efficient elution.
B. The back end of the swab can be broken, which is conducive to the automatic extraction workstation for sample extraction.
C. The swabs is inserted and fixed on the round plastic base, and the transparent plastic protective tube is sheathed on the base, and the transparent rubber cap is sheathed at the front end of the protective tube, and the desiccant is installed in the rubber cap.
D. The swabs were completely protected from biological contamination.
E. There are holes at the front end of the protective tube, and the moisture in the swabs can be absorbed by the desiccant through the holes to prevent the deterioration of biological substances
Technical parameter
| Swabs head length | 20 mm |
| Swabs head diameter | 5mm |
| Swabs rod diameter | 2.5mm |
| Distance between breaking point and front end | 30mm |
| Total length of swabs | 107mm |
| Total length of protective tube | 130mm |
| Outer diameter of protective tube | 13mm |
| Dialysis paper bag | 180x45mm |
| Swabs head material | Nylon |
| Swabs rod material | ABS |
| Protective tube material | PP |
| Anti-corrosion method | desiccant at the front end of protective tube |
| Desiccant material | Color silica gel |
| Desiccant capacity | 0.2g |
| Effectiveness of desiccant | blue is effective, pink is invalid |
| Extraction solution composition | distilled water |
| Extraction solution volume | 10ml / bottle, 2 bottles / bag |
Usage method
A. Pull out the protective tube and spray the extraction solution on the swabs to make it wet.
B. Wipe the suspicious spots with the swabs.
C. The moisture of the swabs can be absorbed by the desiccant at the front of the hole to prevent the material evidence from corruption.
D. Put the swabs with protective tube back into the dialysis paper bag, and the evidence information can be written on the bag.
E. Return to the laboratory, put the swab head into the centrifuge tube, break it at the break point, and leave the swab head in the centrifuge tube.

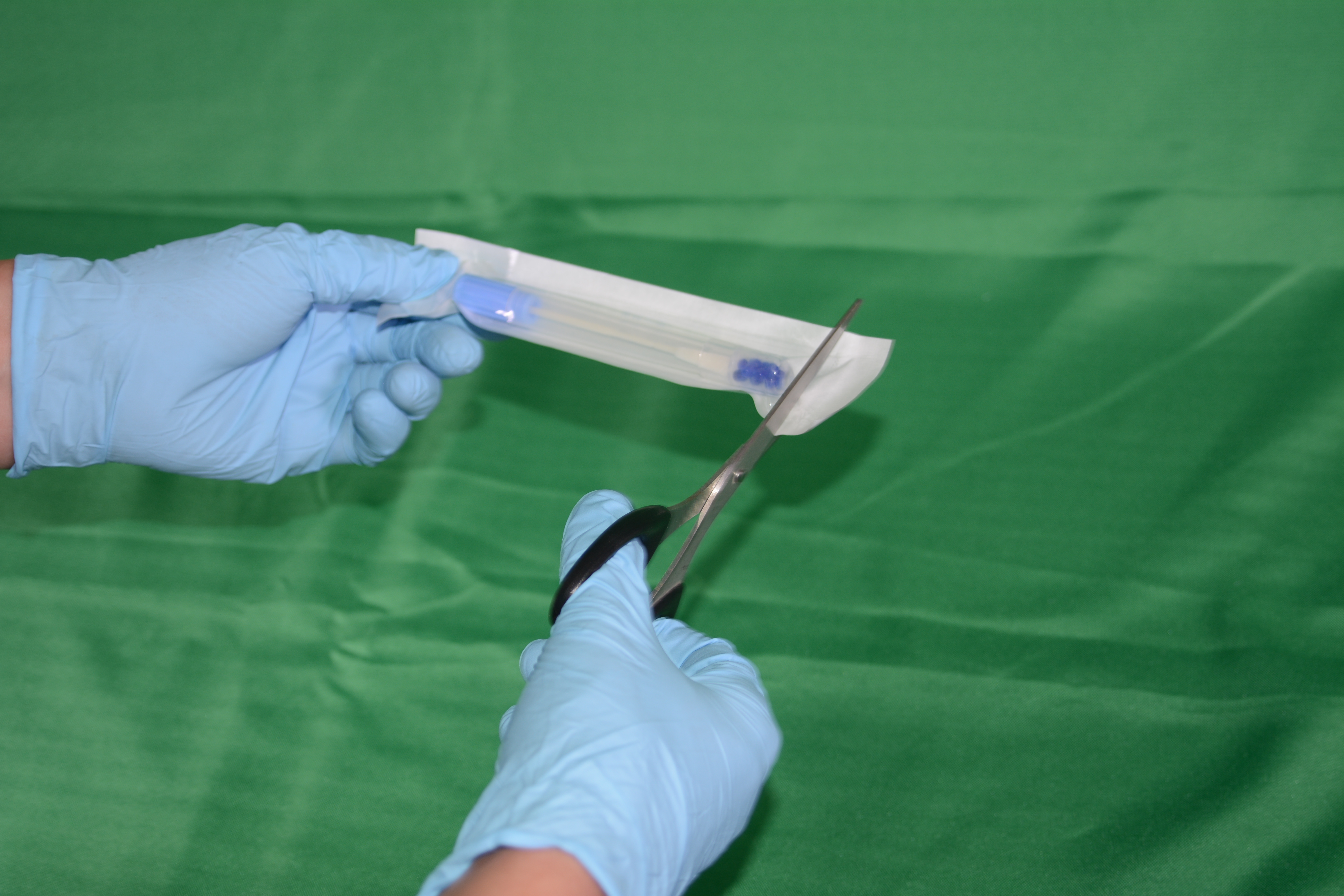

open the packing bag

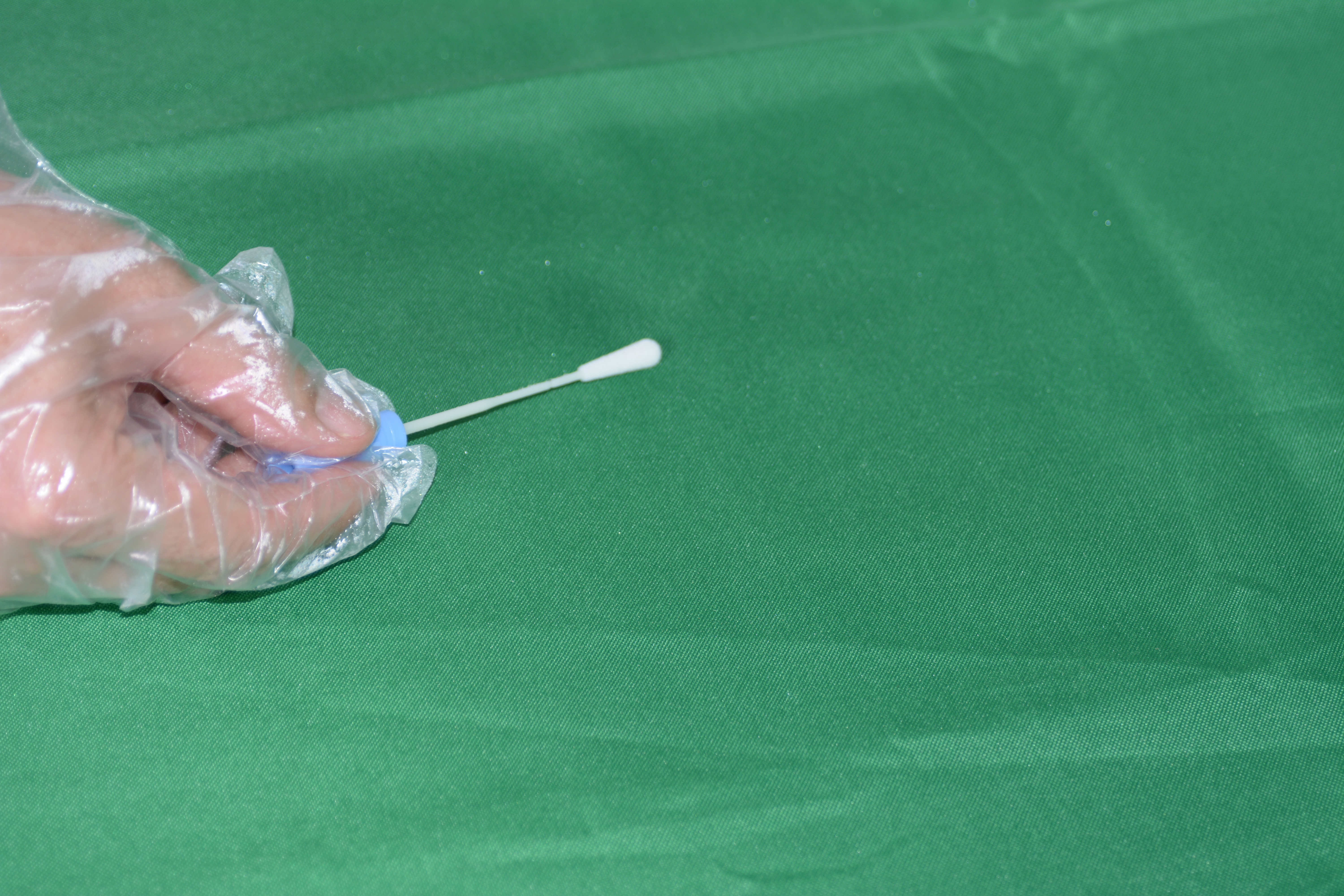

pull out the protective tube
spray the cotton swab with extraction solution

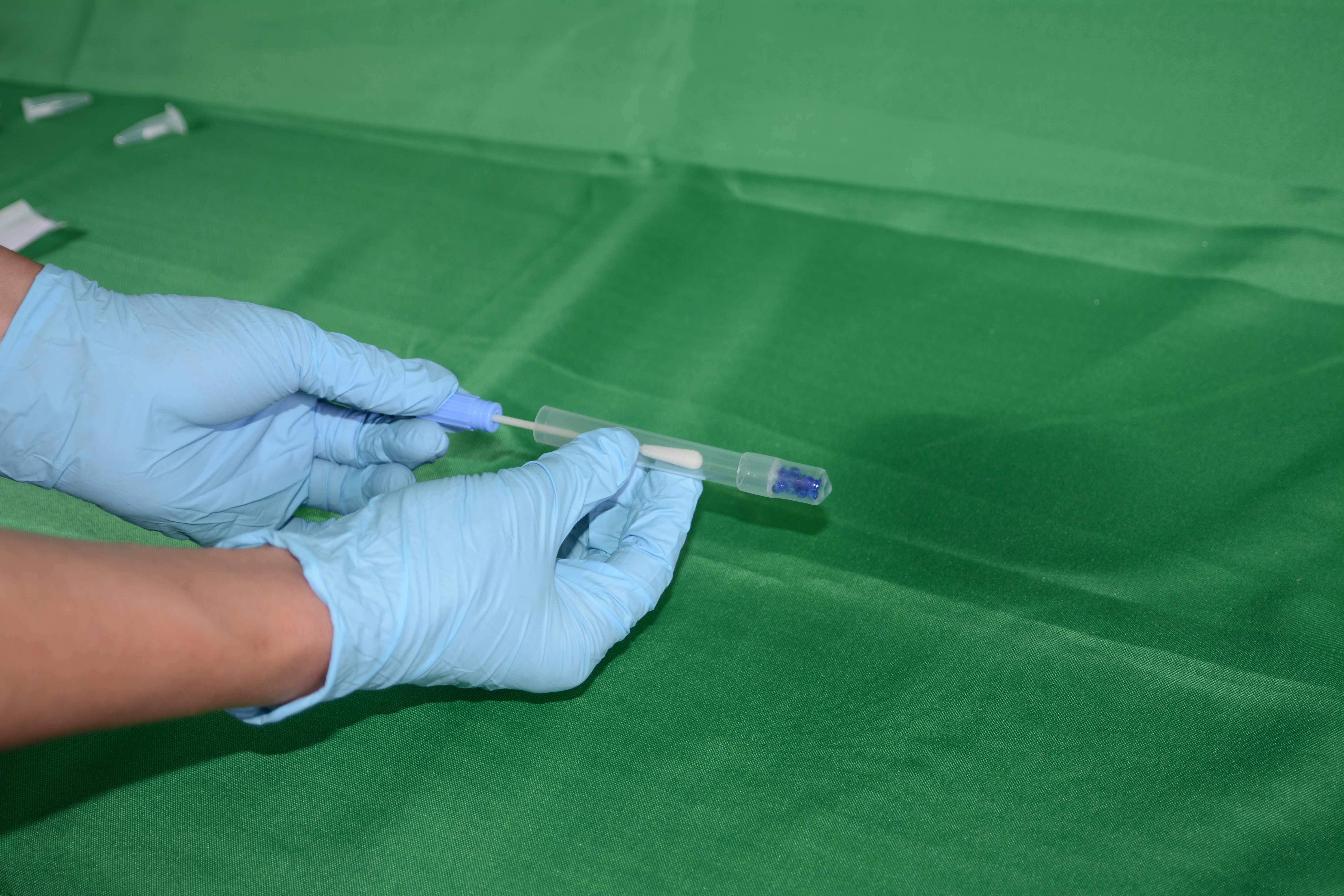

wipe the suspicious spots with a cotton swab

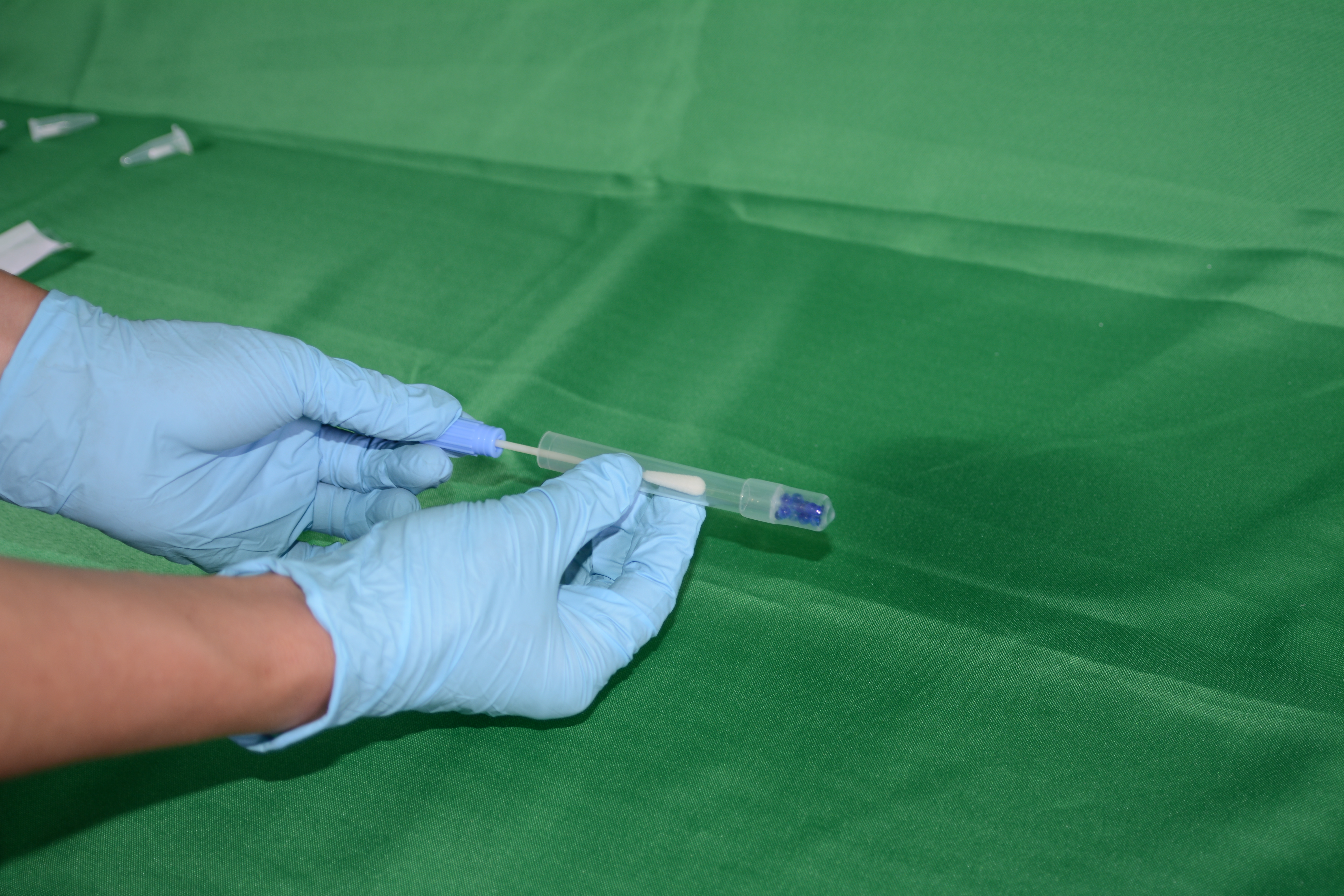

install the protective tube

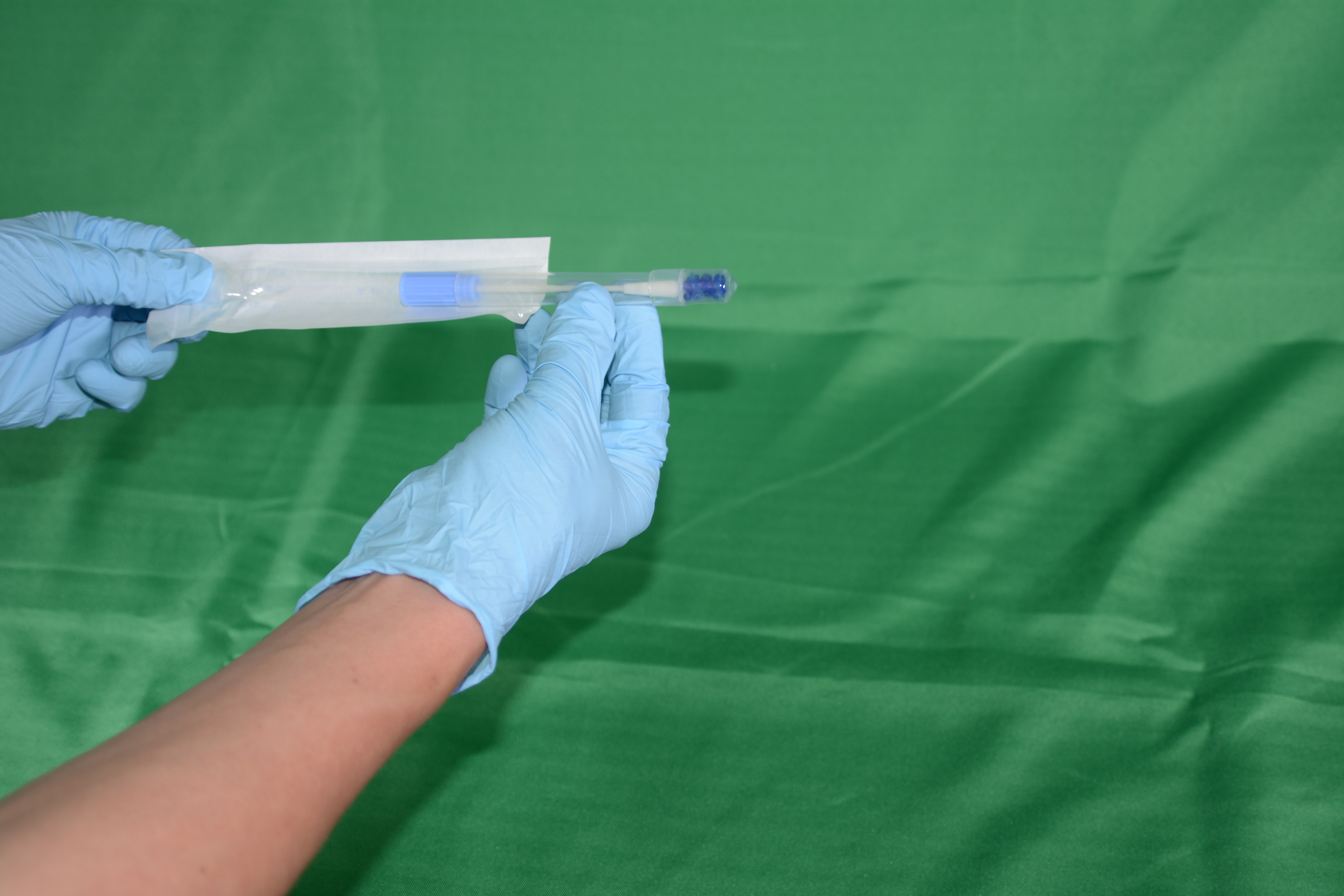

put the cotton swab with protective tube back into the dialysis paper bag

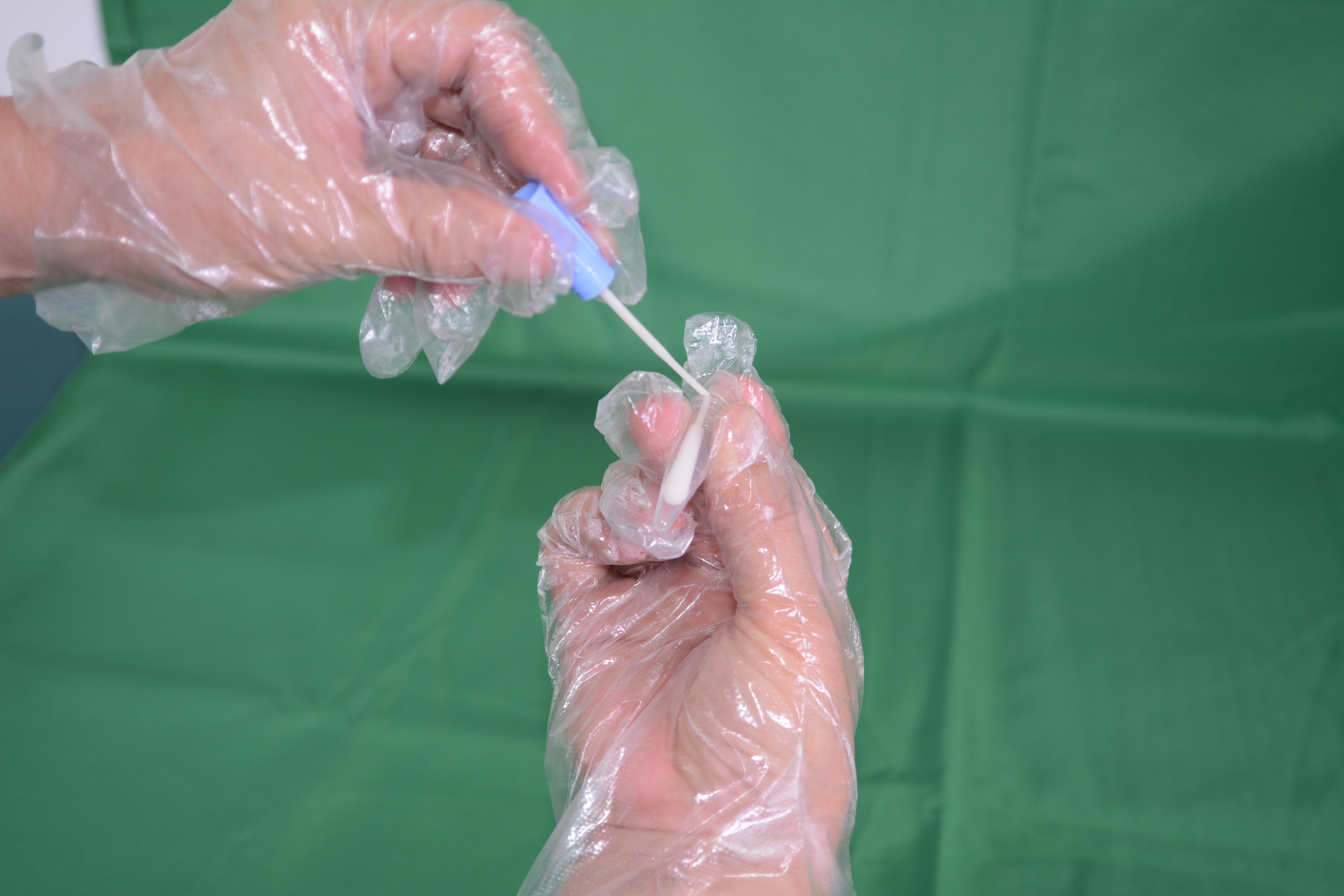

break the swab rod

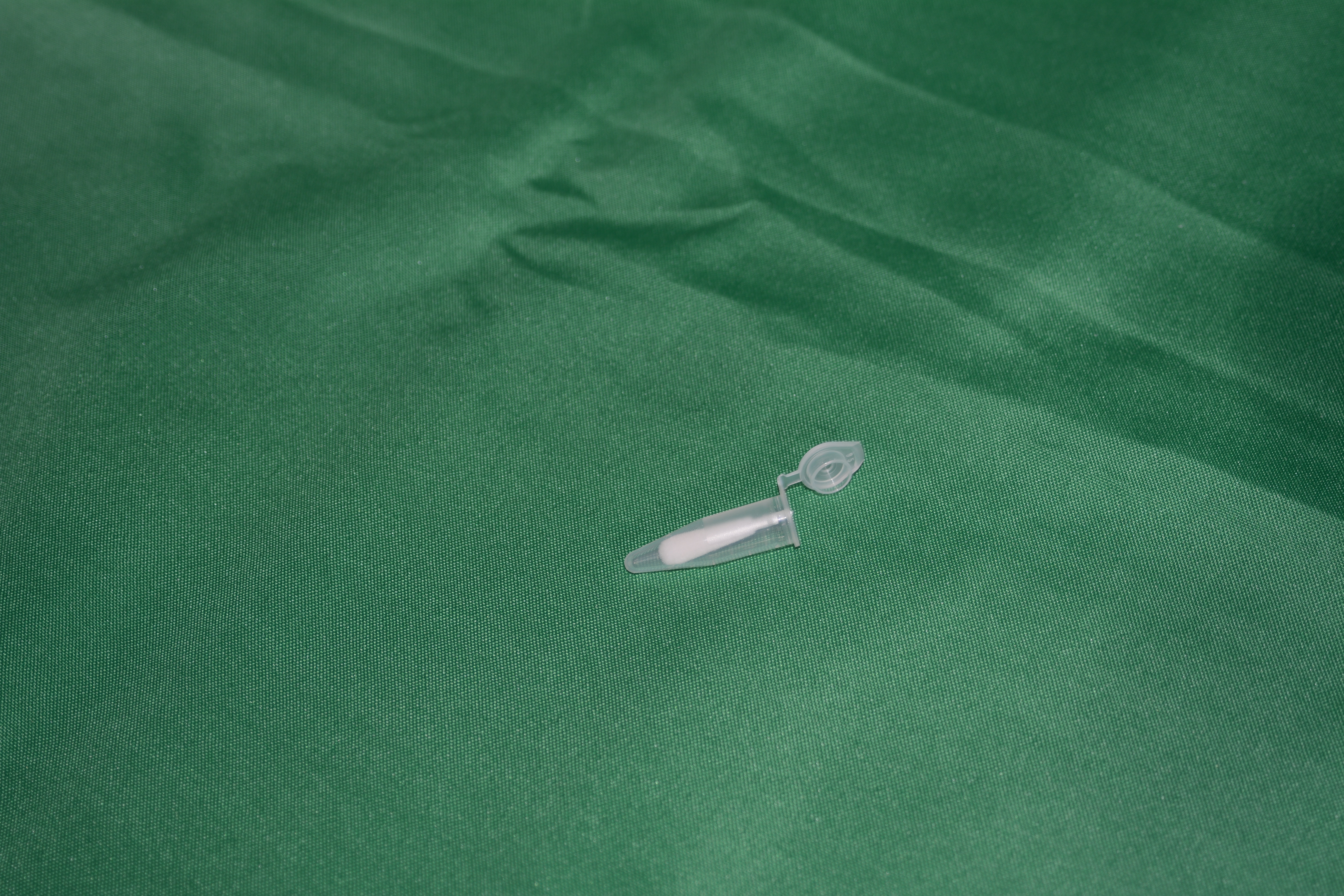

the swab head is left in the centrifuge tube
Product Application
Application areas for our products include crime scene investigation, fingerprint collection and development, footprint collection and development, tool marks collection, trace evidence collection, documents examination, forensic medical examination, forensic evidence collection, DNA collection, DNA disinfection, criminal photography, criminal investigation light source, narcotic drugs test, poison test, evidence packaging, evidence marking, crime scene plotting, crime scene protection, human body protection on crime scene.
