BTKF-II LED wide light exit footprint search light source
Purpose
Irradiate the ground with grazing incident light to find dust footprint, provide lighting for footprint photography.
Content
| Footprint lamp | 1 piece |
| Charger | 1 piece |
| Aluminum case | 1 piece |
Technical parameter
| Output light form | flat light, uniform light |
| Spot width at a distance of 100cm | 110mm |
| Illumination intensity at a distance of 100cm | 15000lux |
| Output light color | white |
| Color temperature | 6000K |
| Luminous light source | 20 high-power LED lamp beads arranged linearly |
| Lamp beads life | 5000 hours |
| Condenser lens | semi-cylindrical lens |
| Power | 50W~100W continuously adjustable |
| Power supply | built-in lithium battery |
| Battery capacity | 14.8V, 10AH |
| Battery life | 1.5 hours at full power |
| Battery level indication | LED indicator shows the dump energy of the built-in battery |
| Charger | DC16.8V, 2A |
| Switch type | rotary switch, which prevents accidental opening and fire |
| Size | 223*207*69mm |
| Weight | 2.15kg |
Features
A. The footprint lamp outputs flat light that is projected on the wall to form a light spot, which has two features: 1. the spot width is small (110cm wide at a distance of 100mm); 2. the edge of the spot is neat.
B. If the light spot is too wide or the edge of the spot is irregular, the ground-reflected light will produce a lot of stray light. The mixing of the stray light and the diffuse reflection light of the dust will seriously weaken the contrast between the dust and the ground.
C. If the light spot's width is small and the edge of the spot is neat, the ground-reflected light mainly concentrates in the direction of mirror reflection, and little stray light with uncertain direction is formed, so the contrast between dust and the ground is very strong.
Working principle
The footprint lamp outputs high-intensity flat light. When the light is output at an angle close to the ground, the smooth ground reflects the incident light directionally, and dust reflects the incident light diffusely. Observe the ground in a direction deflected from the mirror reflection direction of the ground, then the strong contrast between the dark ground and the bright dust footprint can be seen.
Instructions
A. Place the footprint lamp 50cm from the dust footprint and turn on the switch. The footprint lamp outputs flat light to illuminate the footprint on the ground. Along the direction of the light, try to reduce the height of the eye to observe the ground, and a good contrast of the footprint can be seen.
B. Against the direction of the light, try to reduce the height of the eye to observe the ground, and a good contrast of the footprint can be seen at a height just avoiding the reflection spot.
C. Adjust the lamp-footprint distance and the elevation angle of the light outlet until a footprint with ideal contrast is seen.
D. Turn the switch to adjust the brightness.

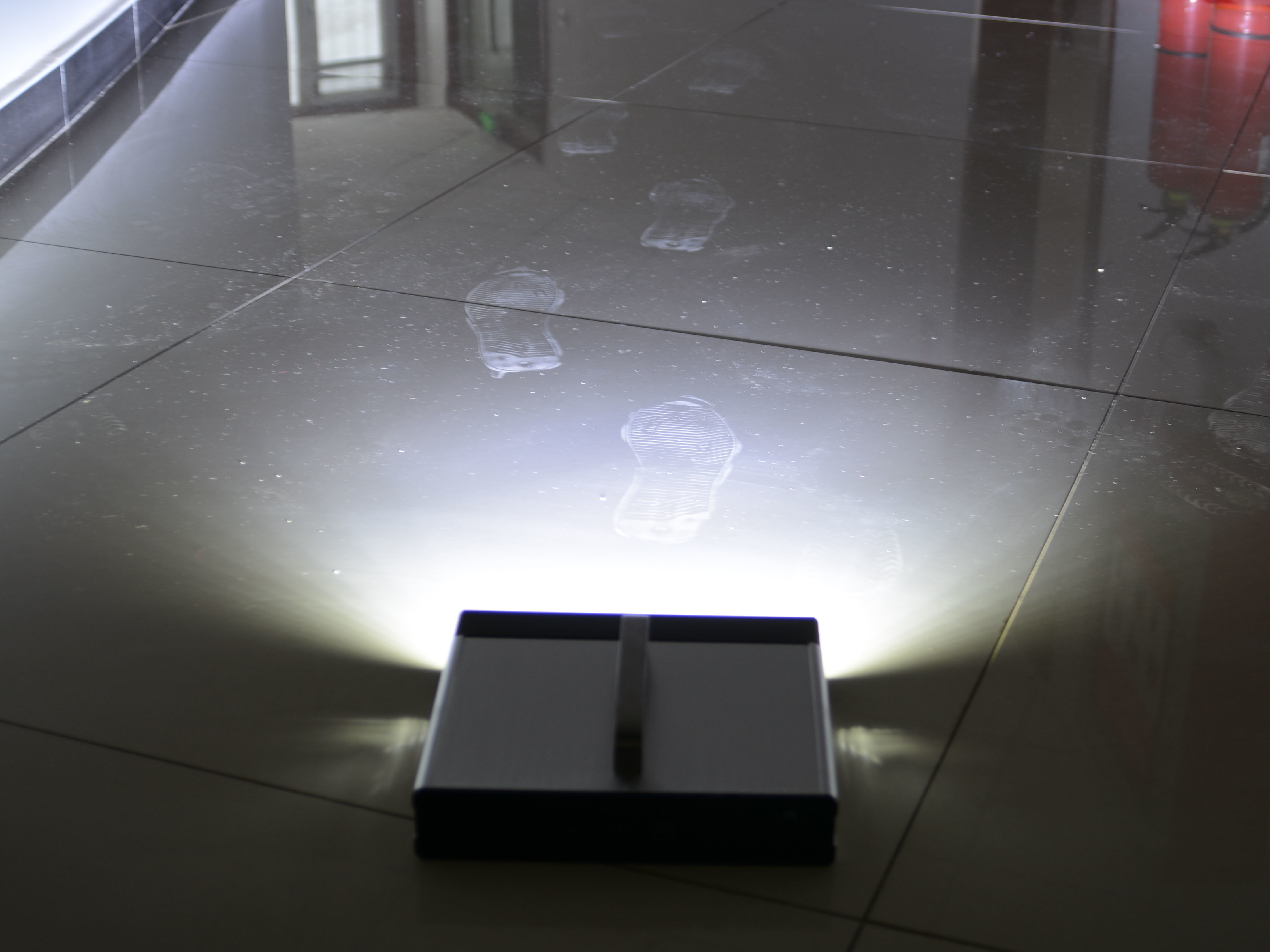

Along the direction of the light, try to reduce the height of the eye to observe the ground, and a good contrast of the footprint can be seen

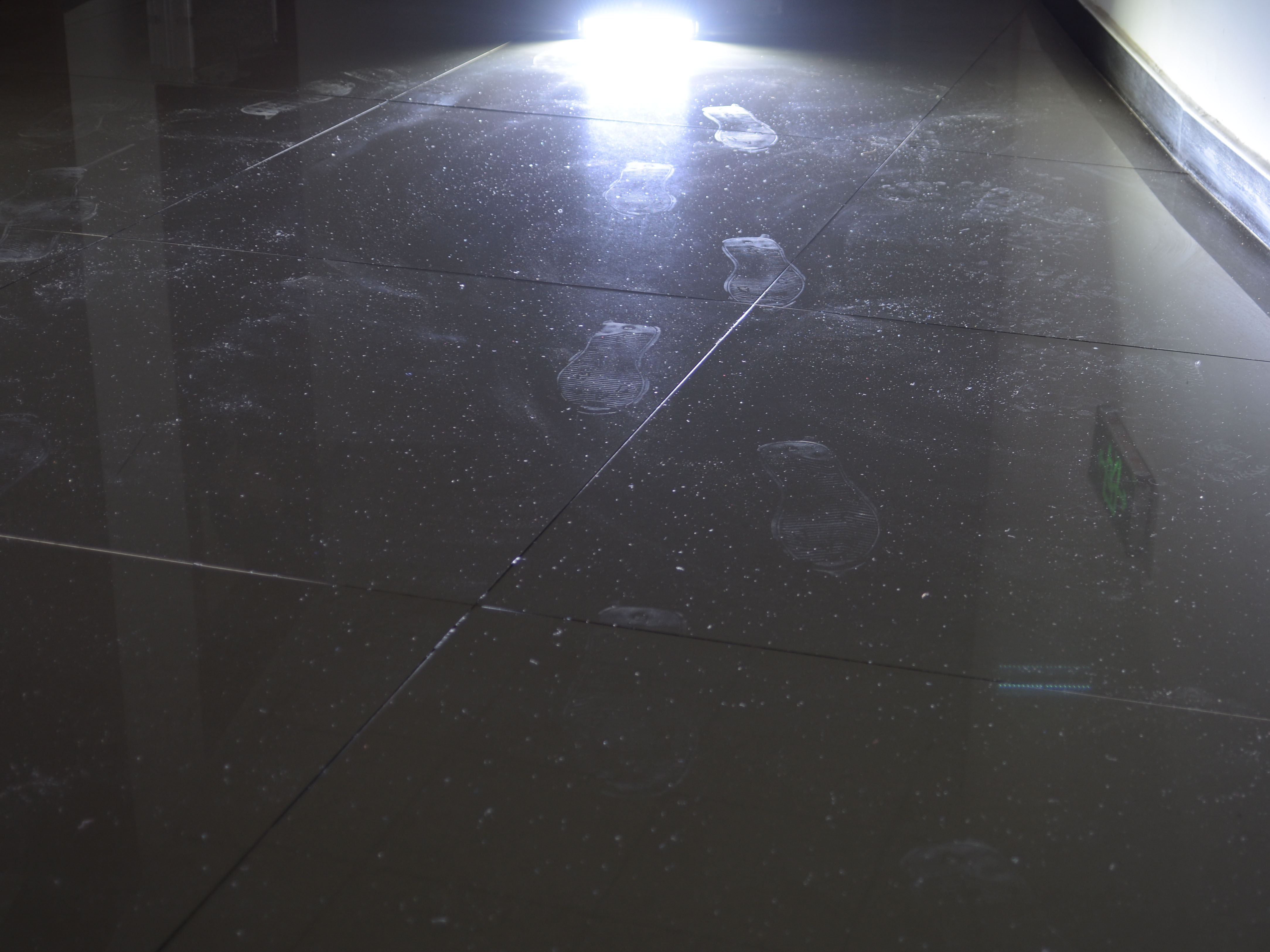

Against the direction of the light, try to reduce the height of the eye to observe the ground, and a good contrast of the footprint can be seen
Dust footprints lifted by lifting film under white light
